Copper Core PVC Insulated Electrical Wire for Residential & Industrial Use

Understanding Copper PVC Wire: The Backbone of Modern Electrical Systems

In the realm of electrical wiring and cable solutions, few components are as ubiquitous and critical as Copper PVC wire. This product represents a perfect synergy of conductive excellence and protective insulation, forming the essential arteries that power our homes, industries, and technologies. At Shujie Electric, we have dedicated decades to mastering the engineering and manufacturing of this fundamental product, ensuring it meets the highest standards of safety, durability, and performance.

The core principle is straightforward: high-purity copper provides an unparalleled path for electrical current, while the Polyvinyl Chloride (PVC) insulation safeguards against electrical leakage, environmental factors, and physical wear. However, the journey from raw materials to a reliable finished wire involves precision engineering, stringent quality control, and a deep understanding of application demands. This guide delves into the technical specifications, advantages, and proper selection criteria for Copper PVC wire, highlighting why Shujie Electric's offerings stand as a benchmark in the industry.

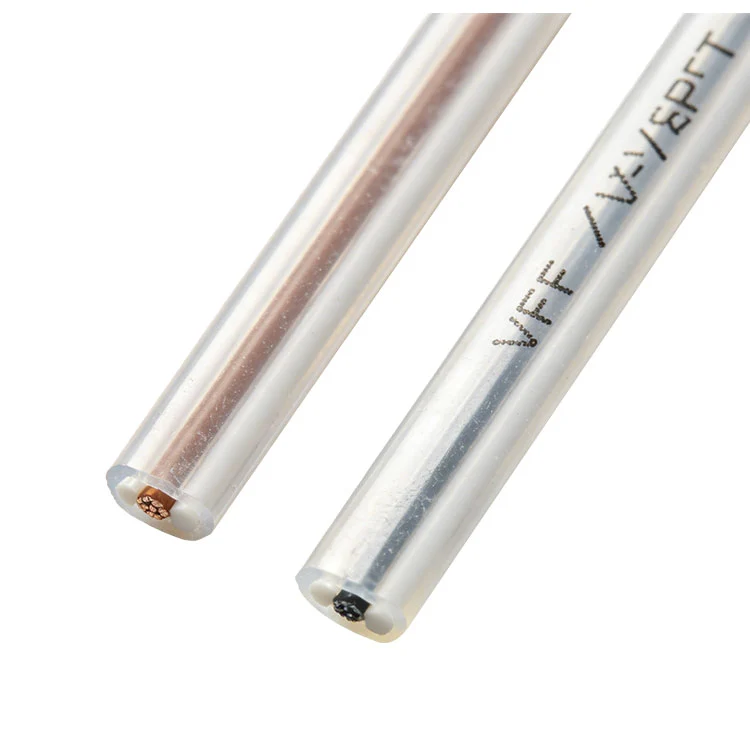

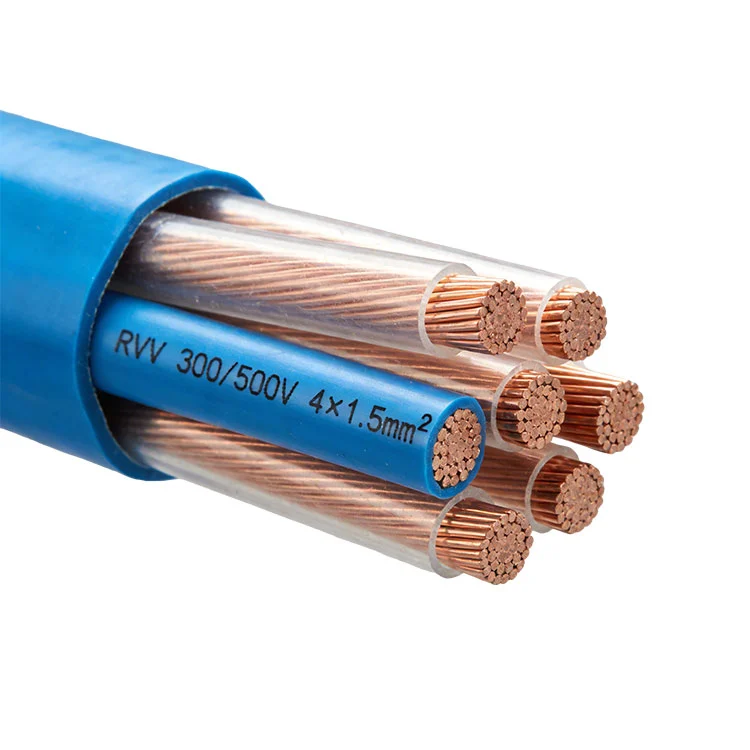

Our Copper PVC Wire series includes products such as Japanese-style PVC Insulated Flat Double-core Wire (VFF/VHF), RVV Polyvinyl Chloride Wire, and others.

Applications and Industry Uses

The versatility of Copper PVC wire makes it indispensable across a broad spectrum of industries. Its reliability is trusted in countless applications.

Residential & Commercial Building Wiring: The primary use is in power distribution, lighting circuits, and outlet wiring within walls, conduits, and ceilings.

Control Panels & Automation: Used extensively in control cabinets, PLC wiring, and machinery for signal transmission and low-power control circuits due to its flexibility and reliability.

Appliance Internal Wiring: Found in household and industrial appliances for internal connections between components, switches, and power supplies.

Telecommunications & Data: While not for high-speed data, it is used for backbone power supplies to telecom equipment, intercom systems, and analog signal lines.

Electrical Equipment & Transformers: Used for winding leads, internal connections in transformers, motors (for auxiliary circuits), and other electrical equipment.

Automotive & Marine (Specific Grades): Specialized thin-wall or automotive-grade Copper PVC wire is used in non-critical vehicle wiring, always ensuring the grade meets required temperature and fluid resistance standards.

Proper Storage and Handling Guidelines

To preserve the performance and shelf life of Shujie Electric's Copper PVC wire, proper handling is essential.

Storage: Store reels or coils in a cool, dry, and well-ventilated environment away from direct sunlight. Ideal temperature range is between -10°C and 40°C (14°F to 104°F). Avoid storing near heat sources, chemicals, or ozone-generating equipment.

Handling: Use appropriate equipment to move reels to prevent damage to the wire edges or insulation. Avoid dragging wire across rough surfaces. When pulling wire through conduits, use proper lubrication rated for PVC to minimize friction and insulation abrasion.

Installation: Do not exceed the minimum bending radius (typically 4-8 times the overall cable diameter) to prevent insulation cracking or conductor damage. Ensure connections are tight and made with compatible terminals to prevent localized heating.

Inspection: Before installation, inspect the wire for any signs of damage, such as cuts, nicks, or deformation in the insulation. Do not use damaged wire.
